Ocular::Editor::PropertyWidget Class Reference
Editor | Ocular

Parent class for all general property widgets. More...

#include <PropertyWidget.hpp>

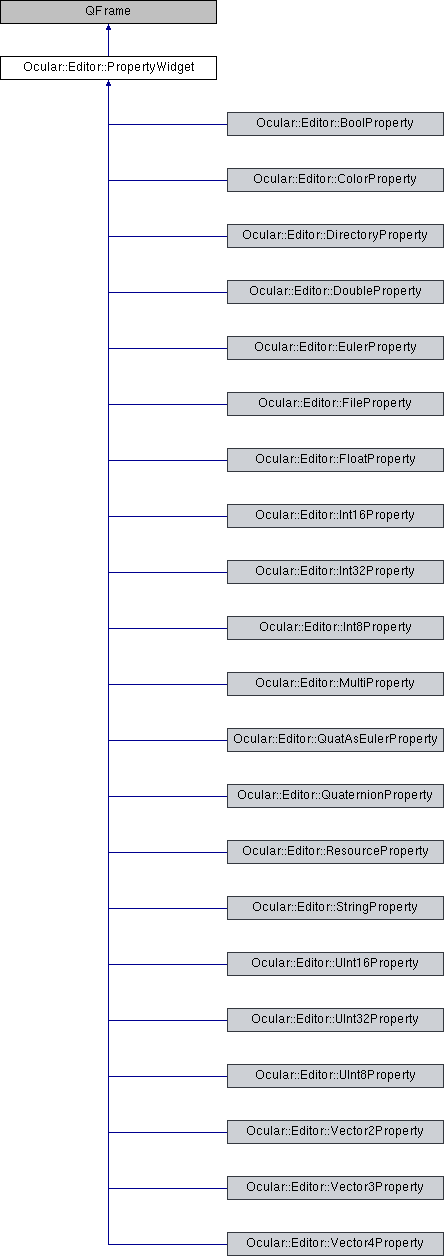

Inheritance diagram for Ocular::Editor::PropertyWidget:
Ocular::Editor::BoolProperty Ocular::Editor::ColorProperty Ocular::Editor::DirectoryProperty Ocular::Editor::DoubleProperty Ocular::Editor::EulerProperty Ocular::Editor::FileProperty Ocular::Editor::FloatProperty Ocular::Editor::Int16Property Ocular::Editor::Int32Property Ocular::Editor::Int8Property Ocular::Editor::MultiProperty Ocular::Editor::QuatAsEulerProperty Ocular::Editor::QuaternionProperty Ocular::Editor::ResourceProperty Ocular::Editor::StringProperty Ocular::Editor::UInt16Property Ocular::Editor::UInt32Property Ocular::Editor::UInt8Property Ocular::Editor::Vector2Property Ocular::Editor::Vector3Property Ocular::Editor::Vector4Property

Public Member Functions

 PropertyWidget (std::string const &type, QWidget *parent=nullptr)

virtual QSize sizeHint () const override

virtual bool updateProperties ()

virtual void setValue (void *value, uint32_t size)

virtual std::string getValue () const

std::string getType () const

void setVariable (Core::ExposedVariable &variable)

void setDisplayName (std::string const &name)

std::string const & getDisplayName () const

std::string const & getVariableName () const

void addWidgetLeftSide (QWidget *widget)

void addWidgetRightSide (QWidget *widget)


Protected Attributes

QHBoxLayout * m_LayoutRight
 Layout for the right-side frame.

Core::ExposedVariable m_Variable
 The variable this widget is responsible for displaying and modifying.


Detailed Description

Parent class for all general property widgets.

Each instance of a property widget is broken into two parts: a name on the left side, and some form of data display on the right.

Member Function Documentation

void Ocular::Editor::PropertyWidget::addWidgetLeftSide ( QWidget *  widget)

Adds a new widget to the left-side layout.

Parameters
[in]widget
void Ocular::Editor::PropertyWidget::addWidgetRightSide ( QWidget *  widget)

Adds a new widget to the right-side layout.

Parameters
[in]widget
std::string const & Ocular::Editor::PropertyWidget::getDisplayName ( ) const

Retrieves the text of the label on the left-side of the widget.

std::string Ocular::Editor::PropertyWidget::getType ( ) const
Returns
Type of property as a string
std::string Ocular::Editor::PropertyWidget::getValue ( ) const
virtual
Returns
Value as a std::string

Reimplemented in Ocular::Editor::ResourceProperty, Ocular::Editor::DirectoryProperty, Ocular::Editor::FileProperty, Ocular::Editor::QuatAsEulerProperty, Ocular::Editor::StringProperty, Ocular::Editor::ColorProperty, Ocular::Editor::Vector2Property, Ocular::Editor::Vector3Property, Ocular::Editor::Vector4Property, Ocular::Editor::Int16Property, Ocular::Editor::Int32Property, Ocular::Editor::Int8Property, Ocular::Editor::UInt16Property, Ocular::Editor::UInt32Property, Ocular::Editor::UInt8Property, Ocular::Editor::DoubleProperty, Ocular::Editor::FloatProperty, Ocular::Editor::BoolProperty, Ocular::Editor::EulerProperty, and Ocular::Editor::QuaternionProperty.

std::string const & Ocular::Editor::PropertyWidget::getVariableName ( ) const

Retrieves the name of the exposed variable.

void Ocular::Editor::PropertyWidget::setDisplayName ( std::string const &  name)

Sets the text of the label on the left-side of the widget.

Parameters
[in]name
void Ocular::Editor::PropertyWidget::setValue ( void *  value,
uint32_t  size
)
virtual

Sets the value of the variable and/or widget.

Reimplemented in Ocular::Editor::ResourceProperty, Ocular::Editor::DirectoryProperty, Ocular::Editor::FileProperty, Ocular::Editor::QuatAsEulerProperty, Ocular::Editor::StringProperty, Ocular::Editor::ColorProperty, Ocular::Editor::Vector2Property, Ocular::Editor::Vector3Property, Ocular::Editor::Vector4Property, Ocular::Editor::Int16Property, Ocular::Editor::Int32Property, Ocular::Editor::Int8Property, Ocular::Editor::UInt16Property, Ocular::Editor::UInt32Property, Ocular::Editor::UInt8Property, Ocular::Editor::DoubleProperty, Ocular::Editor::FloatProperty, Ocular::Editor::BoolProperty, Ocular::Editor::EulerProperty, and Ocular::Editor::QuaternionProperty.

void Ocular::Editor::PropertyWidget::setVariable ( Core::ExposedVariable &  variable)

Sets the variable whose data should be displayed and made available to modify by the implementation.

Parameters
[in]variable
bool Ocular::Editor::PropertyWidget::updateProperties ( )
virtual

Update method that is called up to once a frame so that changes to the tracked variable may be checked for, and displayed.

Returns
Should return TRUE if a property was modified by the user; otherwise return FALSE.

Reimplemented in Ocular::Editor::ResourceProperty, Ocular::Editor::ColorProperty, Ocular::Editor::DirectoryProperty, Ocular::Editor::FileProperty, Ocular::Editor::QuatAsEulerProperty, Ocular::Editor::Int16Property, Ocular::Editor::Int32Property, Ocular::Editor::Int8Property, Ocular::Editor::UInt16Property, Ocular::Editor::UInt32Property, Ocular::Editor::UInt8Property, Ocular::Editor::MultiProperty, Ocular::Editor::DoubleProperty, Ocular::Editor::FloatProperty, Ocular::Editor::BoolProperty, Ocular::Editor::EulerProperty, Ocular::Editor::QuaternionProperty, Ocular::Editor::StringProperty, Ocular::Editor::Vector2Property, Ocular::Editor::Vector3Property, and Ocular::Editor::Vector4Property.

The documentation for this class was generated from the following files:
