Combination of a VertexBuffer and IndexBuffer. More...

#include <Mesh.hpp>

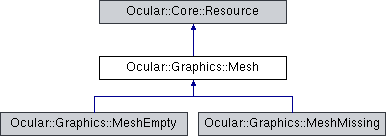

Inheritance diagram for Ocular::Graphics::Mesh:

Public Member Functions
virtual bool	bind ()

virtual void	unbind ()

virtual void	unload () override

void	setVertexBuffer (VertexBuffer *buffer, uint32_t submesh=0)

VertexBuffer *	getVertexBuffer (uint32_t submesh=0)

void	setIndexBuffer (IndexBuffer *buffer, uint32_t submesh=0)

IndexBuffer *	getIndexBuffer (uint32_t submesh=0)

void	calculateMinMaxPoints ()

void	setMinMaxPoints (Math::Vector3f const &min, Math::Vector3f const &max)

Math::Vector3f const &	getMinPoint () const

Math::Vector3f const &	getMaxPoint () const

SubMesh *	getSubMesh (uint32_t index) const

uint32_t	addSubMesh (SubMesh *submesh=nullptr)

bool	setSubMesh (SubMesh *submesh, uint32_t index)

bool	removeSubMesh (uint32_t index)

uint32_t	getNumSubMeshes () const

Public Member Functions inherited from Ocular::Core::Resource
	Resource (File const &source)

virtual void	forceLoad ()

File	getSourceFile () const

void	setSourceFile (File const &file)

void	setIsInMemory (bool inMemory)

bool	isInMemory () const

void	setSize (uint64_t size)

uint64_t	getSize () const

ResourceType	getResourceType () const

void	setName (std::string const &name)

std::string const &	getName () const

std::string const &	getMappingName () const

void	setMappingName (std::string const &name)

ResourceMetadata *	getMetadata () const

void	setMetadata (ResourceMetadata *metadata)

Protected Attributes
Math::Vector3f	m_MinPoint

Math::Vector3f	m_MaxPoint

std::vector< SubMesh * >	m_SubMeshes

Protected Attributes inherited from Ocular::Core::Resource
ResourceType	m_Type

ResourceMetadata *	m_Metadata

File	m_SourceFile

bool	m_IsInMemory

uint64_t	m_SizeInMemory

std::string	m_Name

std::string	m_MappingName

Detailed Description

Combination of a VertexBuffer and IndexBuffer.

Member Function Documentation

uint32_t Ocular::Graphics::Mesh::addSubMesh ( SubMesh * submesh = nullptr )

Adds a SubMesh to the Mesh.

If provided SubMesh is NULL, then a new SubMesh is created.

Note: The Mesh assumes ownership of the SubMesh and will delete it upon destruction or removal.

Parameters

[in] submesh

Returns: Index of the newly added SubMesh

bool Ocular::Graphics::Mesh::bind ( )

virtual

Does nothing.

See SubMesh::Bind to bind a vertex/index buffer pair.

Reimplemented in Ocular::Graphics::MeshEmpty, and Ocular::Graphics::MeshMissing.

void Ocular::Graphics::Mesh::calculateMinMaxPoints ( )

Calculates the minimum and maximum vertex spatial points within the mesh.

Note: Potentially slow on extremely large data sets.

IndexBuffer * Ocular::Graphics::Mesh::getIndexBuffer ( uint32_t submesh = 0 )

Note: Any changes made to the buffer will not take affect until IndexBuffer::build is called and the Mesh is rebound.

Parameters

[in] submesh The index of the submesh whose buffer should be retrieved.

Returns: A pointer to the specified IndexBuffer. May be NULL.

Math::Vector3f const & Ocular::Graphics::Mesh::getMaxPoint ( ) const

Returns the maximum vertex spatial point along all 3 axis. This point does not necessarily correspond with an actual vertex position.

Note that this point is cached, and is thus retrieved in constant time. It is also the local point prior to any transformations that may be performed on the parent renderer/model/etc. (translate, scale, rotate).

Returns: Maximum point along all 3 local axis.

Math::Vector3f const & Ocular::Graphics::Mesh::getMinPoint ( ) const

Returns the minimum vertex spatial point along all 3 axis. This point does not necessarily correspond with an actual vertex position.

Note that this point is cached, and is thus retrieved in constant time. It is also the local point prior to any transformations that may be performed on the parent renderer/model/etc. (translate, scale, rotate).

Returns: Minimum point along all 3 local axis.

uint32_t Ocular::Graphics::Mesh::getNumSubMeshes ( ) const

Returns: Returns the number of SubMeshes that comprise this Mesh.

SubMesh * Ocular::Graphics::Mesh::getSubMesh ( uint32_t index ) const

Returns the SubMesh at the specified index.

Parameters

[in] index

Returns: Pointer to the requested SubMesh. Returns NULL if the specified index is out-of-bounds.

VertexBuffer * Ocular::Graphics::Mesh::getVertexBuffer ( uint32_t submesh = 0 )

Returns a pointer to the current vertex buffer of this mesh, which can then be modified.

After modifying vertex data, one should call either calculateMinMaxPoints() or setMinMaxPoints() so that bounding volumes, etc. based off of this mesh will be accurate.

Any changes made to the buffer will not take affect until VertexBuffer::build is called and the Mesh is rebound.

Parameters

[in] submesh The index of the submesh whose buffer should be retrieved.

Returns: A pointer to the specified IndexBuffer. May be NULL.

bool Ocular::Graphics::Mesh::removeSubMesh ( uint32_t index )

Destroys the SubMesh at the specified index.

Parameters

[in] index

Returns: Returns TRUE if the SubMesh was successfully destroyed. Returns FALSE if the specified index is invalid.

void Ocular::Graphics::Mesh::setIndexBuffer	(	IndexBuffer *	buffer,
		uint32_t	submesh = `0`
	)

Sets the IndexBuffer for this Mesh.

Note: The Mesh takes ownership of the buffer and will delete it when it is no longer in use.

Parameters

[in]	buffer
[in]	submesh	Index of the submesh that should receive the new buffer.

void Ocular::Graphics::Mesh::setMinMaxPoints	(	Math::Vector3f const &	min,
		Math::Vector3f const &	max
	)

Sets the minimum and maximum vertex spatial points within the mesh data.

These should represent the extrema along each of the local axis, and do not necessarily correlate to an actual vertex within the mesh.

Parameters

[in]	min
[in]	max

bool Ocular::Graphics::Mesh::setSubMesh	(	SubMesh *	submesh,
		uint32_t	index
	)

Sets the SubMesh at the specified index.

The pre-existing SubMesh is deleted during this action.

Note: The Mesh assumes ownership of the SubMesh and will delete it upon destruction or removal.

Parameters

[in]	submesh
[in]	index

Returns: Returns TRUE if the SubMesh was correctly set. Returns FALSE if the specified index is invalid.

void Ocular::Graphics::Mesh::setVertexBuffer	(	VertexBuffer *	buffer,
		uint32_t	submesh = `0`
	)

Sets the VertexBuffer for this Mesh.

After modifying vertex data, one should call either calculateMinMaxPoints() or setMinMaxPoints() so that bounding volumes, etc. based off of this mesh will be accurate.

The Mesh takes ownership of the buffer and will delete it when it is no longer in use.

Parameters

[in]	buffer
[in]	submesh	Index of the submesh that should receive the new buffer.

void Ocular::Graphics::Mesh::unbind ( )

virtual

Does nothing.

See SubMesh::Unind to unbind a vertex/index buffer pair.

Reimplemented in Ocular::Graphics::MeshEmpty, and Ocular::Graphics::MeshMissing.

void Ocular::Graphics::Mesh::unload ( )

overridevirtual

Unloads this Mesh from CPU and GPU memory

Reimplemented from Ocular::Core::Resource.

Reimplemented in Ocular::Graphics::MeshEmpty, and Ocular::Graphics::MeshMissing.

The documentation for this class was generated from the following files:

C:/Projects/OcularEngine/OcularCore/include/Graphics/Mesh/Mesh.hpp
C:/Projects/OcularEngine/OcularCore/src/Graphics/Mesh/Mesh.cpp
