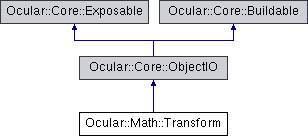

Inheritance diagram for Ocular::Math::Transform:

Public Types
enum	DirtyFlags { None = 0, Position = 1, Rotation = 2, Scale = 4 }

Public Member Functions
	Transform (Vector3f const &position, Quaternion const &rotation, Vector3f const &scale)

void	refresh ()

uint32_t	getDirtyFlags (bool clearFlags=true)

void	setPosition (Vector3f const &position)

void	setPosition (float const x, float const y, float const z)

Vector3f const &	getPosition () const

void	setRotation (Quaternion const &rotation)

Quaternion const &	getRotation () const

void	setScale (Vector3f const &scale)

Vector3f const &	getScale () const

Vector3f	getForwards () const

Vector3f	getUp () const

Vector3f	getRight () const

Matrix4x4 const &	getModelMatrix () const

void	translate (Vector3f const &translation, bool local=true)

void	moveForward (float const delta)

void	moveUp (float const delta)

void	moveRight (float const delta)

void	rotate (float angle, Vector3f const &axis)

void	rotate (Math::Quaternion const &rotation)

void	lookAt (Vector3f const &point, Vector3f const &upVector=Vector3f::Up())

virtual void	onLoad (Core::BuilderNode const *node) override

virtual void	onVariableModified (std::string const &varName) override

Public Member Functions inherited from Ocular::Core::ObjectIO
virtual void	onSave (BuilderNode *node) const override

Public Member Functions inherited from Ocular::Core::Exposable
void	getAllExposedNames (std::vector< std::string > &names) const

bool	getVariable (std::string const &name, ExposedVariable &var)

template<typename T >
bool	getVariableValue (std::string const &name, T &var)

template<typename T >
bool	setVariableValue (std::string const &name, T const &value)

Additional Inherited Members
Protected Member Functions inherited from Ocular::Core::Exposable
void	exposeVariable (std::string const &name, std::string const &type, bool isPointer, bool isExposed, void *data)

Protected Attributes inherited from Ocular::Core::Exposable
std::unordered_map< std::string, ExposedVariable >	m_ExposedVariables

Member Function Documentation

Vector3f Ocular::Math::Transform::getForwards ( ) const

Retrieves the forwards (negative z-axis) vector of this transform.

Matrix4x4 const & Ocular::Math::Transform::getModelMatrix ( ) const

Returns the model matrix composed of the current position, rotation, and scale.

Vector3f Ocular::Math::Transform::getRight ( ) const

Retrieves the right (positive x-axis) vector of this transform.

Vector3f Ocular::Math::Transform::getUp ( ) const

Retrieves the upwards (positive y-axis) vector of this transform.

void Ocular::Math::Transform::lookAt	(	Vector3f const &	point,
		Vector3f const &	upVector = `Vector3f::Up()`
	)

Rotates the transform so that the forward vector points at the specified point.

Parameters

[in]	point	Point position in space to look at.
[in]	upVector	Vector that specifies the new up vector.

void Ocular::Math::Transform::moveForward ( float const delta )

Moves the transform along the forward vector for the given delta. Moving backwards can be achieved by specifying a negative delta.

Parameters

[in] delta

void Ocular::Math::Transform::moveRight ( float const delta )

Moves the transform along the right vector for the given delta. Moving left can be achieved by specifying a negative delta.

Parameters

[in] delta

void Ocular::Math::Transform::moveUp ( float const delta )

Moves the transform along the up vector for the given delta. Moving downwards can be achieved by specifying a negative delta.

Parameters

[in] delta

void Ocular::Math::Transform::onLoad ( Core::BuilderNode const * node )

overridevirtual

Alternate creation method (opposed to the constructor) in which one is provided with a BuilderNode chain. This chain may be explored to retrieve any relevant variables, and their values, that may have been stored in it.

This method will typically mirror the onSave, in which relevant values are stored within the chain.

Parameters

[in] node Node to extract variable information from

Reimplemented from Ocular::Core::ObjectIO.

void Ocular::Math::Transform::onVariableModified ( std::string const & varName )

overridevirtual

Optional method that should be called after modifying an exposed variable. This allows the implementation a chance to react to the modification if necessary.

Reimplemented from Ocular::Core::Exposable.

void Ocular::Math::Transform::refresh ( )

Forces a rebuild of the Model matrix. Typically this matrix is only built when a 'set' method is called.

void Ocular::Math::Transform::rotate	(	float	angle,
		Vector3f const &	axis
	)

Rotates the transform on the specified axis by the given angle.

Parameters

[in]	angle	Angles to rotate in degrees.
[in]	axis	Normalized vector axis to rotate on.

void Ocular::Math::Transform::translate	(	Vector3f const &	translation,
		bool	local = `true`
	)

Translates the transform in the specified direction and distance.

Parameters

[in] translation

The documentation for this class was generated from the following files:

C:/Projects/OcularEngine/OcularCore/include/Math/Transform.hpp
C:/Projects/OcularEngine/OcularCore/src/Math/Transform.cpp
