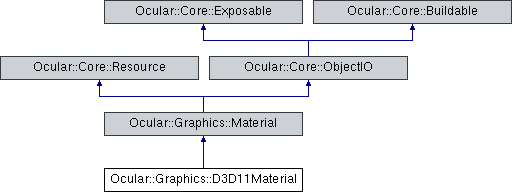

Inheritance diagram for Ocular::Graphics::D3D11Material:

Public Member Functions
	D3D11Material (ID3D11DeviceContext *context)

virtual void	bind () override

virtual void	unbind () override

virtual bool	setTexture (uint32_t index, std::string const &name, Texture *texture) override

virtual void	removeTexture (uint32_t index) override

Public Member Functions inherited from Ocular::Graphics::Material
virtual void	unload () override

virtual void	onLoad (Core::BuilderNode const *node) override

virtual void	onSave (Core::BuilderNode *node) const override

Texture *	getTexture (uint32_t index) const

uint32_t	getNumTextures () const

std::vector< TextureSamplerInfo > const *	getTextures () const

bool	setVertexShader (std::string const &name)

void	setVertexShader (VertexShader *shader)

bool	setGeometryShader (std::string const &name)

void	setGeometryShader (GeometryShader *shader)

bool	setFragmentShader (std::string const &name)

void	setFragmentShader (FragmentShader *shader)

bool	setPreTessellationShader (std::string const &name)

void	setPreTessellationShader (PreTessellationShader *shader)

bool	setPostTessellationShader (std::string const &name)

void	setPostTessellationShader (PostTessellationShader *shader)

VertexShader *	getVertexShader () const

GeometryShader *	getGeometryShader () const

FragmentShader *	getFragmentShader () const

PreTessellationShader *	getPreTessellationShader () const

PostTessellationShader *	getPostTessellationShader () const

virtual void	setUniform (std::string const &name, uint32_t registerIndex, float value)

virtual bool	getUniform (std::string const &name, float &value)

virtual void	setUniform (std::string const &name, uint32_t registerIndex, Math::Vector4f const &value, std::string const &type=Utils::TypeName< Math::Vector4f >::name)

virtual bool	getUniform (std::string const &name, Math::Vector4f &value)

virtual void	setUniform (std::string const &name, uint32_t registerIndex, Math::Matrix3x3 const &value)

virtual bool	getUniform (std::string const &name, Math::Matrix3x3 &value)

virtual void	setUniform (std::string const &name, uint32_t registerIndex, Math::Matrix4x4 const &value)

virtual bool	getUniform (std::string const &name, Math::Matrix4x4 &value)

UniformBuffer const *	getUniformBuffer () const

void	setPrimitiveStyle (PrimitiveStyle style)

PrimitiveStyle	getPrimitiveStyle () const

void	setFillMode (FillMode mode)

FillMode	getFillMode () const

void	setRenderPriority (uint32_t priority)

uint32_t	getRenderPriority () const

Public Member Functions inherited from Ocular::Core::Resource
	Resource (File const &source)

virtual void	forceLoad ()

File	getSourceFile () const

void	setSourceFile (File const &file)

void	setIsInMemory (bool inMemory)

bool	isInMemory () const

void	setSize (uint64_t size)

uint64_t	getSize () const

ResourceType	getResourceType () const

void	setName (std::string const &name)

std::string const &	getName () const

std::string const &	getMappingName () const

void	setMappingName (std::string const &name)

ResourceMetadata *	getMetadata () const

void	setMetadata (ResourceMetadata *metadata)

Public Member Functions inherited from Ocular::Core::Exposable
void	getAllExposedNames (std::vector< std::string > &names) const

bool	getVariable (std::string const &name, ExposedVariable &var)

template<typename T >
bool	getVariableValue (std::string const &name, T &var)

template<typename T >
bool	setVariableValue (std::string const &name, T const &value)

virtual void	onVariableModified (std::string const &varName)

Protected Member Functions
void	createSampler ()

void	bindTextures ()

void	unbindTextures ()

Protected Member Functions inherited from Ocular::Graphics::Material
void	setDefaults ()

void	bindShaders ()

void	unbindShaders ()

void	bindStateChanges ()

void	unbindStateChanges ()

Protected Member Functions inherited from Ocular::Core::Exposable
void	exposeVariable (std::string const &name, std::string const &type, bool isPointer, bool isExposed, void *data)

Protected Attributes
ID3D11DeviceContext *	m_D3DDeviceContext

ID3D11SamplerState *	m_D3DSampler

std::vector< ID3D11ShaderResourceView * >	m_ShaderResourceViews

std::vector< ID3D11ShaderResourceView * >	m_NullShaderResourceViews

Protected Attributes inherited from Ocular::Graphics::Material
VertexShader *	m_VertexShader

GeometryShader *	m_GeometryShader

FragmentShader *	m_FragmentShader

PreTessellationShader *	m_PreTessellationShader

PostTessellationShader *	m_PostTessellationShader

RasterState	m_StoredRasterState

std::vector< TextureSamplerInfo >	m_Textures

UniformBuffer *	m_UniformBuffer

uint32_t	m_RenderPriority

Protected Attributes inherited from Ocular::Core::Resource
ResourceType	m_Type

ResourceMetadata *	m_Metadata

File	m_SourceFile

bool	m_IsInMemory

uint64_t	m_SizeInMemory

std::string	m_Name

std::string	m_MappingName

Protected Attributes inherited from Ocular::Core::Exposable
std::unordered_map< std::string, ExposedVariable >	m_ExposedVariables

Additional Inherited Members
Static Public Attributes inherited from Ocular::Graphics::Material
static const std::string	ShaderNodeName = "ShaderProgram"

static const std::string	TextureNodeName = "Textures"

static const std::string	UniformNodeName = "Uniforms"

static const std::string	RenderStateNodeName = "RenderState"

Member Function Documentation

void Ocular::Graphics::D3D11Material::removeTexture ( uint32_t index )

overridevirtual

Removes the texture at the specified index from this material.

Parameters

[in] index

Reimplemented from Ocular::Graphics::Material.

bool Ocular::Graphics::D3D11Material::setTexture	(	uint32_t	index,
		std::string const &	name,
		Texture *	texture
	)

overridevirtual

Assigns a texture to a specific input register for use by the shaders that are part of this material. All textures are automatically bound to all relevant (non-NULL) shader stages.

Depending on the underlying graphics API, and shader implementation language, some may make use of the index or the name or both.

Note that some texture assignment indices and names are reserved by the engine. See ----— for a list of all reserved locations.

Parameters

[in]	index	The index to bind the texture to. This can be on the range of 0 to (GraphicsDriver::getMaxBoundTextures - 1). Note that indices do not have to be sequential. For example, you may have use 0, 1, 3, 79.
[in]	name	The name to bind the texture to.
[in]	texture	The texture to bind.

Returns: TRUE if texture was successfully set. May fail due to invalid index value.

Reimplemented from Ocular::Graphics::Material.

The documentation for this class was generated from the following files:

C:/Projects/OcularEngine/OcularD3D11/include/Material/D3D11Material.hpp
C:/Projects/OcularEngine/OcularD3D11/src/Material/D3D11Material.cpp
