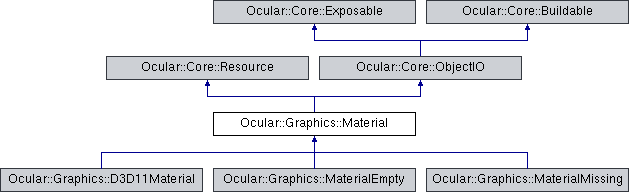

Inheritance diagram for Ocular::Graphics::Material:

Public Member Functions
virtual void	bind ()

virtual void	unbind ()

virtual void	unload () override

virtual void	onLoad (Core::BuilderNode const *node) override

virtual void	onSave (Core::BuilderNode *node) const override

virtual bool	setTexture (uint32_t index, std::string const &name, Texture *texture)

Texture *	getTexture (uint32_t index) const

virtual void	removeTexture (uint32_t index)

uint32_t	getNumTextures () const

std::vector< TextureSamplerInfo > const *	getTextures () const

bool	setVertexShader (std::string const &name)

void	setVertexShader (VertexShader *shader)

bool	setGeometryShader (std::string const &name)

void	setGeometryShader (GeometryShader *shader)

bool	setFragmentShader (std::string const &name)

void	setFragmentShader (FragmentShader *shader)

bool	setPreTessellationShader (std::string const &name)

void	setPreTessellationShader (PreTessellationShader *shader)

bool	setPostTessellationShader (std::string const &name)

void	setPostTessellationShader (PostTessellationShader *shader)

VertexShader *	getVertexShader () const

GeometryShader *	getGeometryShader () const

FragmentShader *	getFragmentShader () const

PreTessellationShader *	getPreTessellationShader () const

PostTessellationShader *	getPostTessellationShader () const

virtual void	setUniform (std::string const &name, uint32_t registerIndex, float value)

virtual bool	getUniform (std::string const &name, float &value)

virtual void	setUniform (std::string const &name, uint32_t registerIndex, Math::Vector4f const &value, std::string const &type=Utils::TypeName< Math::Vector4f >::name)

virtual bool	getUniform (std::string const &name, Math::Vector4f &value)

virtual void	setUniform (std::string const &name, uint32_t registerIndex, Math::Matrix3x3 const &value)

virtual bool	getUniform (std::string const &name, Math::Matrix3x3 &value)

virtual void	setUniform (std::string const &name, uint32_t registerIndex, Math::Matrix4x4 const &value)

virtual bool	getUniform (std::string const &name, Math::Matrix4x4 &value)

UniformBuffer const *	getUniformBuffer () const

void	setPrimitiveStyle (PrimitiveStyle style)

PrimitiveStyle	getPrimitiveStyle () const

void	setFillMode (FillMode mode)

FillMode	getFillMode () const

void	setRenderPriority (uint32_t priority)

uint32_t	getRenderPriority () const

Public Member Functions inherited from Ocular::Core::Resource
	Resource (File const &source)

virtual void	forceLoad ()

File	getSourceFile () const

void	setSourceFile (File const &file)

void	setIsInMemory (bool inMemory)

bool	isInMemory () const

void	setSize (uint64_t size)

uint64_t	getSize () const

ResourceType	getResourceType () const

void	setName (std::string const &name)

std::string const &	getName () const

std::string const &	getMappingName () const

void	setMappingName (std::string const &name)

ResourceMetadata *	getMetadata () const

void	setMetadata (ResourceMetadata *metadata)

Public Member Functions inherited from Ocular::Core::Exposable
void	getAllExposedNames (std::vector< std::string > &names) const

bool	getVariable (std::string const &name, ExposedVariable &var)

template<typename T >
bool	getVariableValue (std::string const &name, T &var)

template<typename T >
bool	setVariableValue (std::string const &name, T const &value)

virtual void	onVariableModified (std::string const &varName)

Static Public Attributes
static const std::string	ShaderNodeName = "ShaderProgram"

static const std::string	TextureNodeName = "Textures"

static const std::string	UniformNodeName = "Uniforms"

static const std::string	RenderStateNodeName = "RenderState"

Protected Member Functions
void	setDefaults ()

void	bindShaders ()

void	unbindShaders ()

void	bindStateChanges ()

void	unbindStateChanges ()

Protected Member Functions inherited from Ocular::Core::Exposable
void	exposeVariable (std::string const &name, std::string const &type, bool isPointer, bool isExposed, void *data)

Protected Attributes
VertexShader *	m_VertexShader

GeometryShader *	m_GeometryShader

FragmentShader *	m_FragmentShader

PreTessellationShader *	m_PreTessellationShader

PostTessellationShader *	m_PostTessellationShader

RasterState	m_StoredRasterState

std::vector< TextureSamplerInfo >	m_Textures

UniformBuffer *	m_UniformBuffer

uint32_t	m_RenderPriority

Protected Attributes inherited from Ocular::Core::Resource
ResourceType	m_Type

ResourceMetadata *	m_Metadata

File	m_SourceFile

bool	m_IsInMemory

uint64_t	m_SizeInMemory

std::string	m_Name

std::string	m_MappingName

Protected Attributes inherited from Ocular::Core::Exposable
std::unordered_map< std::string, ExposedVariable >	m_ExposedVariables

Member Function Documentation

FillMode Ocular::Graphics::Material::getFillMode ( ) const

Returns: Fill mode used by this material

FragmentShader * Ocular::Graphics::Material::getFragmentShader ( ) const

Returns: The fragment shader used by this material. May be NULL if no valid shader is set.

GeometryShader * Ocular::Graphics::Material::getGeometryShader ( ) const

Returns: The geometry shader used by this material. May be NULL if no valid shader is set.

uint32_t Ocular::Graphics::Material::getNumTextures ( ) const

Returns: Number of textures attached to this material.

PostTessellationShader * Ocular::Graphics::Material::getPostTessellationShader ( ) const

Returns: The post-tessellation shader used by this material. May be NULL if no valid shader is set.

PreTessellationShader * Ocular::Graphics::Material::getPreTessellationShader ( ) const

Returns: The pre-tessellation shader used by this material. May be NULL if no valid shader is set.

PrimitiveStyle Ocular::Graphics::Material::getPrimitiveStyle ( ) const

Returns: Primitive style used by this material

uint32_t Ocular::Graphics::Material::getRenderPriority ( ) const

Returns: The render priority assigned to this Material

Texture * Ocular::Graphics::Material::getTexture ( uint32_t index ) const

Retrieves the texture stored at the specified identifier.

Parameters

[in] index Index of the texture to retrieve.

std::vector< TextureSamplerInfo > const * Ocular::Graphics::Material::getTextures ( ) const

Returns: Vector of all textures attached to this material.

Note: Returned vector is read-only. See Material::setTexture and Material::removeTexture to modify.

bool Ocular::Graphics::Material::getUniform	(	std::string const &	name,
		float &	value
	)

virtual

Returns the value of the associated uniform.

Parameters

[in]	name	Valid uniform name.
[out]	value	Value of the specified uniform.

Returns: Returns TRUE if the value was successfully retrieved. May return FALSE if either the uniform does not exist, or it is a different type of value.

bool Ocular::Graphics::Material::getUniform	(	std::string const &	name,
		Math::Vector4f &	value
	)

virtual

Returns the value of the associated uniform.

Parameters

[in]	name	Valid uniform name.
[out]	value	Value of the specified uniform.

Returns: Returns TRUE if the value was successfully retrieved. May return FALSE if either the uniform does not exist, or it is a different type of value.

bool Ocular::Graphics::Material::getUniform	(	std::string const &	name,
		Math::Matrix3x3 &	value
	)

virtual

Returns the value of the associated uniform.

Parameters

[in]	name	Valid uniform name.
[out]	value	Value of the specified uniform.

Returns: Returns TRUE if the value was successfully retrieved. May return FALSE if either the uniform does not exist, or it is a different type of value.

bool Ocular::Graphics::Material::getUniform	(	std::string const &	name,
		Math::Matrix4x4 &	value
	)

virtual

Returns the value of the associated uniform.

Parameters

[in]	name	Valid uniform name.
[out]	value	Value of the specified uniform.

Returns: Returns TRUE if the value was successfully retrieved. May return FALSE if either the uniform does not exist, or it is a different type of value.

UniformBuffer const * Ocular::Graphics::Material::getUniformBuffer ( ) const

Returns: Constant pointer to the UniformBuffer

VertexShader * Ocular::Graphics::Material::getVertexShader ( ) const

Returns: The vertex shader used by this material. May be NULL if no valid shader is set.

void Ocular::Graphics::Material::onLoad ( Core::BuilderNode const * node )

overridevirtual

Alternate creation method (opposed to the constructor) in which one is provided with a BuilderNode chain. This chain may be explored to retrieve any relevant variables, and their values, that may have been stored in it.

This method will typically mirror the onSave, in which relevant values are stored within the chain.

Parameters

[in] node Node to extract variable information from

Reimplemented from Ocular::Core::ObjectIO.

Reimplemented in Ocular::Graphics::MaterialEmpty, and Ocular::Graphics::MaterialMissing.

void Ocular::Graphics::Material::onSave ( Core::BuilderNode * node ) const

overridevirtual

Method used to add an object's data to an existing node chain in preparation for being save to a file.

Parameters

[in] node Node to place variable information in

Reimplemented from Ocular::Core::ObjectIO.

Reimplemented in Ocular::Graphics::MaterialEmpty, and Ocular::Graphics::MaterialMissing.

void Ocular::Graphics::Material::removeTexture ( uint32_t index )

virtual

Removes the texture at the specified index from this material.

Parameters

[in] index

Reimplemented in Ocular::Graphics::D3D11Material.

void Ocular::Graphics::Material::setFillMode ( FillMode mode )

Sets the fill mode that the material should render as.

Parameters

[in] fill

bool Ocular::Graphics::Material::setFragmentShader ( std::string const & name )

Sets the fragment shader used by this Material.

Parameters

[in] name Name of the shader to use.

Returns: Returns TRUE if the shader was successfully set. May fail if no ShaderProgram with a matching name was discovered, or if that ShaderProgram did not contain a fragment shader.

void Ocular::Graphics::Material::setFragmentShader ( FragmentShader * shader )

Sets the fragment shader used by this Material.

Parameters

[in] shader Pointer to the shared fragment shader to use.

bool Ocular::Graphics::Material::setGeometryShader ( std::string const & name )

Sets the geometry shader used by this Material.

Parameters

[in] name Name of the shader to use.

Returns: Returns TRUE if the shader was successfully set. May fail if no ShaderProgram with a matching name was discovered, or if that ShaderProgram did not contain a geometry shader.

void Ocular::Graphics::Material::setGeometryShader ( GeometryShader * shader )

Sets the geometry shader used by this Material.

Parameters

[in] shader Pointer to the shared geometry shader to use.

bool Ocular::Graphics::Material::setPostTessellationShader ( std::string const & name )

Sets the post-tessellation shader used by this Material.

Parameters

[in] name Name of the shader to use.

Returns: Returns TRUE if the shader was successfully set. May fail if no ShaderProgram with a matching name was discovered, or if that ShaderProgram did not contain a post-tessellation shader.

void Ocular::Graphics::Material::setPostTessellationShader ( PostTessellationShader * shader )

Sets the post-tessellation shader used by this Material.

Parameters

[in] shader Pointer to the shared post-tessellation shader to use.

bool Ocular::Graphics::Material::setPreTessellationShader ( std::string const & name )

Sets the pre-tessellation shader used by this Material.

Parameters

[in] name Name of the shader to use.

Returns: Returns TRUE if the shader was successfully set. May fail if no ShaderProgram with a matching name was discovered, or if that ShaderProgram did not contain a pre-tessellation shader.

void Ocular::Graphics::Material::setPreTessellationShader ( PreTessellationShader * shader )

Sets the pre-tessellation shader used by this Material.

Parameters

[in] shader Pointer to the shared pre-tessellation shader to use.

void Ocular::Graphics::Material::setPrimitiveStyle ( PrimitiveStyle style )

Sets the primitive style that the material should render as.

Parameters

[in] style

void Ocular::Graphics::Material::setRenderPriority ( uint32_t priority )

Sets the priority of the material in the render queue.

See Graphics::RenderPriority for pre-set priority values.

Parameters

[in] priority

bool Ocular::Graphics::Material::setTexture	(	uint32_t	index,
		std::string const &	name,
		Texture *	texture
	)

virtual

Assigns a texture to a specific input register for use by the shaders that are part of this material. All textures are automatically bound to all relevant (non-NULL) shader stages.

Depending on the underlying graphics API, and shader implementation language, some may make use of the index or the name or both.

Note that some texture assignment indices and names are reserved by the engine. See ----— for a list of all reserved locations.

Parameters

[in]	index	The index to bind the texture to. This can be on the range of 0 to (GraphicsDriver::getMaxBoundTextures - 1). Note that indices do not have to be sequential. For example, you may have use 0, 1, 3, 79.
[in]	name	The name to bind the texture to.
[in]	texture	The texture to bind.

Returns: TRUE if texture was successfully set. May fail due to invalid index value.

Reimplemented in Ocular::Graphics::D3D11Material.

void Ocular::Graphics::Material::setUniform	(	std::string const &	name,
		uint32_t	registerIndex,
		float	value
	)

virtual

Sets the value of the specified uniform.

Note: This uniform value is set for all valid shaders associated with this material.

Parameters

[in]	name	Valid uniform name.
[in]	registerIndex	First register that the uniform occupies. Each register is 16 bytes, and a single uniform may occupy multiple registers at once.
[in]	value	Single floating-point value for the uniform.

Returns: TRUE if the Uniform value was set successfully. May fail due to invalid index, etc.

void Ocular::Graphics::Material::setUniform	(	std::string const &	name,
		uint32_t	registerIndex,
		Math::Vector4f const &	value,
		std::string const &	type = `Utils::TypeName<Math::Vector4f>::name`
	)

virtual

Sets the value of the specified uniform.

Note: This uniform value is set for all valid shaders associated with this material.

Parameters

[in]	name	Valid uniform name.
[in]	registerIndex	First register that the uniform occupies. Each register is 16 bytes, and a single uniform may occupy multiple registers at once.
[in]	value	A 4-component Vector value for the uniform.
[in]	type	Uniform type. Used to differentiate between Vector4f and Color uniforms.

Returns: TRUE if the Uniform value was set successfully. May fail due to invalid index, etc.

void Ocular::Graphics::Material::setUniform	(	std::string const &	name,
		uint32_t	registerIndex,
		Math::Matrix3x3 const &	value
	)

virtual

Sets the value of the specified uniform.

Note: This uniform value is set for all valid shaders associated with this material.

Parameters

[in]	name	Valid uniform name.
[in]	registerIndex	First register that the uniform occupies. Each register is 16 bytes, and a single uniform may occupy multiple registers at once.
[in]	value	A 3x3 matrix value for the uniform.

Returns: TRUE if the Uniform value was set successfully. May fail due to invalid index, etc.

void Ocular::Graphics::Material::setUniform	(	std::string const &	name,
		uint32_t	registerIndex,
		Math::Matrix4x4 const &	value
	)

virtual

Sets the value of the specified uniform.

Note: This uniform value is set for all valid shaders associated with this material.

Parameters

[in]	name	Valid uniform name.
[in]	registerIndex	First register that the uniform occupies. Each register is 16 bytes, and a single uniform may occupy multiple registers at once.
[in]	value	A 4x4 matrix value for the uniform.

Returns: TRUE if the Uniform value was set successfully. May fail due to invalid index, etc.

bool Ocular::Graphics::Material::setVertexShader ( std::string const & name )

Sets the vertex shader used by this Material.

Parameters

[in] name Name of the shader to use.

Returns: Returns TRUE if the shader was successfully set. May fail if no ShaderProgram with a matching name was discovered, or if that ShaderProgram did not contain a vertex shader.

void Ocular::Graphics::Material::setVertexShader ( VertexShader * shader )

Sets the vertex shader used by this Material.

Parameters

[in] shader Pointer to the shared vertex shader to use.

void Ocular::Graphics::Material::unload ( )

overridevirtual

Frees all memory used by this Resource.

Reimplemented from Ocular::Core::Resource.

Reimplemented in Ocular::Graphics::MaterialEmpty, and Ocular::Graphics::MaterialMissing.

The documentation for this class was generated from the following files:

C:/Projects/OcularEngine/OcularCore/include/Graphics/Material/Material.hpp
C:/Projects/OcularEngine/OcularCore/src/Graphics/Material/Material.cpp

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Member Function Documentation
