Special default 'missing' Material. Typically used internally. More...

#include <MaterialMissing.hpp>

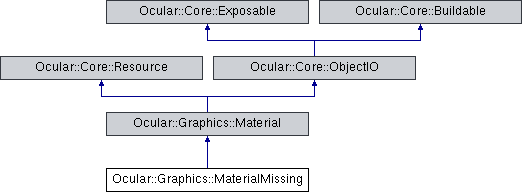

Inheritance diagram for Ocular::Graphics::MaterialMissing:

Public Member Functions
virtual void	bind () override

virtual void	unbind () override

virtual void	unload () override

virtual void	onLoad (Core::BuilderNode const *node) override

virtual void	onSave (Core::BuilderNode *node) const override

Public Member Functions inherited from Ocular::Graphics::Material
virtual bool	setTexture (uint32_t index, std::string const &name, Texture *texture)

Texture *	getTexture (uint32_t index) const

virtual void	removeTexture (uint32_t index)

uint32_t	getNumTextures () const

std::vector< TextureSamplerInfo > const *	getTextures () const

bool	setVertexShader (std::string const &name)

void	setVertexShader (VertexShader *shader)

bool	setGeometryShader (std::string const &name)

void	setGeometryShader (GeometryShader *shader)

bool	setFragmentShader (std::string const &name)

void	setFragmentShader (FragmentShader *shader)

bool	setPreTessellationShader (std::string const &name)

void	setPreTessellationShader (PreTessellationShader *shader)

bool	setPostTessellationShader (std::string const &name)

void	setPostTessellationShader (PostTessellationShader *shader)

VertexShader *	getVertexShader () const

GeometryShader *	getGeometryShader () const

FragmentShader *	getFragmentShader () const

PreTessellationShader *	getPreTessellationShader () const

PostTessellationShader *	getPostTessellationShader () const

virtual void	setUniform (std::string const &name, uint32_t registerIndex, float value)

virtual bool	getUniform (std::string const &name, float &value)

virtual void	setUniform (std::string const &name, uint32_t registerIndex, Math::Vector4f const &value, std::string const &type=Utils::TypeName< Math::Vector4f >::name)

virtual bool	getUniform (std::string const &name, Math::Vector4f &value)

virtual void	setUniform (std::string const &name, uint32_t registerIndex, Math::Matrix3x3 const &value)

virtual bool	getUniform (std::string const &name, Math::Matrix3x3 &value)

virtual void	setUniform (std::string const &name, uint32_t registerIndex, Math::Matrix4x4 const &value)

virtual bool	getUniform (std::string const &name, Math::Matrix4x4 &value)

UniformBuffer const *	getUniformBuffer () const

void	setPrimitiveStyle (PrimitiveStyle style)

PrimitiveStyle	getPrimitiveStyle () const

void	setFillMode (FillMode mode)

FillMode	getFillMode () const

void	setRenderPriority (uint32_t priority)

uint32_t	getRenderPriority () const

Public Member Functions inherited from Ocular::Core::Resource
	Resource (File const &source)

virtual void	forceLoad ()

File	getSourceFile () const

void	setSourceFile (File const &file)

void	setIsInMemory (bool inMemory)

bool	isInMemory () const

void	setSize (uint64_t size)

uint64_t	getSize () const

ResourceType	getResourceType () const

void	setName (std::string const &name)

std::string const &	getName () const

std::string const &	getMappingName () const

void	setMappingName (std::string const &name)

ResourceMetadata *	getMetadata () const

void	setMetadata (ResourceMetadata *metadata)

Public Member Functions inherited from Ocular::Core::Exposable
void	getAllExposedNames (std::vector< std::string > &names) const

bool	getVariable (std::string const &name, ExposedVariable &var)

template<typename T >
bool	getVariableValue (std::string const &name, T &var)

template<typename T >
bool	setVariableValue (std::string const &name, T const &value)

virtual void	onVariableModified (std::string const &varName)

Additional Inherited Members
Static Public Attributes inherited from Ocular::Graphics::Material
static const std::string	ShaderNodeName = "ShaderProgram"

static const std::string	TextureNodeName = "Textures"

static const std::string	UniformNodeName = "Uniforms"

static const std::string	RenderStateNodeName = "RenderState"

Protected Member Functions inherited from Ocular::Graphics::Material
void	setDefaults ()

void	bindShaders ()

void	unbindShaders ()

void	bindStateChanges ()

void	unbindStateChanges ()

Protected Member Functions inherited from Ocular::Core::Exposable
void	exposeVariable (std::string const &name, std::string const &type, bool isPointer, bool isExposed, void *data)

Protected Attributes inherited from Ocular::Graphics::Material
VertexShader *	m_VertexShader

GeometryShader *	m_GeometryShader

FragmentShader *	m_FragmentShader

PreTessellationShader *	m_PreTessellationShader

PostTessellationShader *	m_PostTessellationShader

RasterState	m_StoredRasterState

std::vector< TextureSamplerInfo >	m_Textures

UniformBuffer *	m_UniformBuffer

uint32_t	m_RenderPriority

Protected Attributes inherited from Ocular::Core::Resource
ResourceType	m_Type

ResourceMetadata *	m_Metadata

File	m_SourceFile

bool	m_IsInMemory

uint64_t	m_SizeInMemory

std::string	m_Name

std::string	m_MappingName

Protected Attributes inherited from Ocular::Core::Exposable
std::unordered_map< std::string, ExposedVariable >	m_ExposedVariables

Detailed Description

Special default 'missing' Material. Typically used internally.

Member Function Documentation

void Ocular::Graphics::MaterialMissing::onLoad ( Core::BuilderNode const * node )

overridevirtual

Alternate creation method (opposed to the constructor) in which one is provided with a BuilderNode chain. This chain may be explored to retrieve any relevant variables, and their values, that may have been stored in it.

This method will typically mirror the onSave, in which relevant values are stored within the chain.

Parameters

[in] node Node to extract variable information from

Reimplemented from Ocular::Graphics::Material.

void Ocular::Graphics::MaterialMissing::onSave ( Core::BuilderNode * node ) const

overridevirtual

Method used to add an object's data to an existing node chain in preparation for being save to a file.

Parameters

[in] node Node to place variable information in

Reimplemented from Ocular::Graphics::Material.

void Ocular::Graphics::MaterialMissing::unload ( )

overridevirtual

Frees all memory used by this Resource.

Reimplemented from Ocular::Graphics::Material.

The documentation for this class was generated from the following files:

C:/Projects/OcularEngine/OcularCore/include/Graphics/Material/MaterialMissing.hpp
C:/Projects/OcularEngine/OcularCore/src/Graphics/Material/MaterialMissing.cpp
