Ocular::Editor::AxisGizmoRenderable Class Reference
Editor | Ocular

#include <AxisGizmoRenderable.hpp>

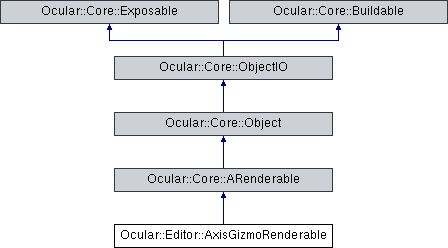

Inheritance diagram for Ocular::Editor::AxisGizmoRenderable:
Ocular::Core::ARenderable Ocular::Core::Object Ocular::Core::ObjectIO Ocular::Core::Exposable Ocular::Core::Buildable

Public Member Functions

virtual bool initialize () override

virtual bool preRender () override

virtual void render () override

virtual void render (Graphics::Material *material) override

virtual uint32_t getRenderPriority () const override

void setSelected (bool selected)

- Public Member Functions inherited from Ocular::Core::ARenderable
 ARenderable (std::string const &name="ARenderable", std::string const &type="ARenderable", SceneObject *parent=nullptr)

virtual void postRender ()

virtual bool preRenderDebug ()

virtual void renderDebug ()

virtual void postRenderDebug ()

virtual void buildBounds (Math::BoundsSphere *sphere, Math::BoundsAABB *aabb, Math::BoundsOBB *obb, Math::Matrix4x4 const &matrix=Math::Matrix4x4())

SceneObject * getParent () const

std::string const & getName () const

- Public Member Functions inherited from Ocular::Core::Object
 Object (std::string name, std::string className)
 Creates a new Object with the specified name and class. More...

 Object (std::string name)
 Creates a new Object with the specified name. More...

 Object ()
 Creates a new Object with the default name ('Name').

std::string const & getName () const

void setName (std::string name)
 Sets the name of the Object. More...

std::string const & getClass () const

void setUUID (std::string const &uuid)

UUID const & getUUID () const

int64_t getCreationTime () const

virtual std::string toString () const

template<class T >
bool isType ()

- Public Member Functions inherited from Ocular::Core::ObjectIO
virtual void onLoad (BuilderNode const *node) override

virtual void onSave (BuilderNode *node) const override

- Public Member Functions inherited from Ocular::Core::Exposable
void getAllExposedNames (std::vector< std::string > &names) const

bool getVariable (std::string const &name, ExposedVariable &var)

template<typename T >
bool getVariableValue (std::string const &name, T &var)

template<typename T >
bool setVariableValue (std::string const &name, T const &value)

virtual void onVariableModified (std::string const &varName)


Protected Member Functions

bool initializeMaterials ()

bool initializeMaterialNormal ()

bool initializeMaterialSelected ()

bool initializeMesh ()

- Protected Member Functions inherited from Ocular::Core::Exposable
void exposeVariable (std::string const &name, std::string const &type, bool isPointer, bool isExposed, void *data)


Protected Attributes

Graphics::Material * m_MaterialNormal
 Material when rendering the component when not selected. Will use axis color.

Graphics::Material * m_MaterialSelected
 Material when rendering the component when it is selected.

Graphics::Mesh * m_Mesh

Graphics::DepthStencilState m_DSSPreRender

Graphics::DepthStencilState m_DSSPostRender

bool m_IsSelected

- Protected Attributes inherited from Ocular::Core::ARenderable
SceneObject * m_Parent

- Protected Attributes inherited from Ocular::Core::Object
std::string m_Name

std::string m_Class

UUID m_UUID

const int64_t m_CreationTime

- Protected Attributes inherited from Ocular::Core::Exposable
std::unordered_map< std::string, ExposedVariable > m_ExposedVariables


Detailed Description

Special purpose renderable attached to an AxisComponentGizmo object. Responsible for setting the axis color and ensuring it is drawn in front of all other objects.

Member Function Documentation

uint32_t Ocular::Editor::AxisGizmoRenderable::getRenderPriority ( ) const
overridevirtual

Virtual method that should be overridden by child implementations.

Implementation is left up to the user as Renderables do not have a pre-set number of Materials (where RenderPriority is defined) or a Material heirarchy.

Some Renderable implementations may have a single Material, some may have multiple.

Some may wish to use the priority of the first Material, others an average priority of all Materials attached to the Renderable.

Returns
The render priority of the Renderable. By default, returns 2000 (Opaque priority).

Reimplemented from Ocular::Core::ARenderable.

bool Ocular::Editor::AxisGizmoRenderable::preRender ( )
overridevirtual

Called prior to the render method.

Should handle any setup required for rendering to be successful, such as Material binding, etc.

Returns
If return FALSE, rendering will be cancelled.

Reimplemented from Ocular::Core::ARenderable.

void Ocular::Editor::AxisGizmoRenderable::render ( )
overridevirtual

Performs any necessary rendering calls such as GraphicsDriver::renderMesh.

Reimplemented from Ocular::Core::ARenderable.

void Ocular::Editor::AxisGizmoRenderable::render ( Graphics::Material *  material)
overridevirtual

Renders the renderable with the specified Material.

Use this version of the render method when doing operations such as post-processing when all objects need to be rendered using the same effect.

Parameters
[in]material

Reimplemented from Ocular::Core::ARenderable.

The documentation for this class was generated from the following files:
