Ocular Engine
Public Member Functions | Protected Member Functions | List of all members
Ocular::Graphics::D3D11Texture2D Class Reference
Ocular » Graphics | Ocular

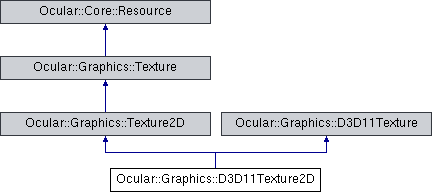

Inheritance diagram for Ocular::Graphics::D3D11Texture2D:
Ocular::Graphics::Texture2D Ocular::Graphics::D3D11Texture Ocular::Graphics::Texture Ocular::Core::Resource

Public Member Functions

 D3D11Texture2D (TextureDescriptor const &descriptor, ID3D11Device *device)

virtual void unload () override

virtual void apply () override

virtual void refresh () override

- Public Member Functions inherited from Ocular::Graphics::Texture2D
 Texture2D (TextureDescriptor const &descriptor)

Core::Color getPixel (uint32_t x, uint32_t y) const

bool setPixel (uint32_t x, uint32_t y, Core::Color const &color)

bool getPixels (std::vector< Core::Color > &pixels, uint32_t startX=0, uint32_t startY=0, uint32_t width=0, uint32_t height=0) const

bool setPixels (std::vector< Core::Color > const &pixels, uint32_t startX=0, uint32_t startY=0, uint32_t width=0, uint32_t height=0)

unsigned getWidth () const

void setWidth (uint32_t const &width)

unsigned getHeight () const

void setHeight (uint32_t const &height)

- Public Member Functions inherited from Ocular::Graphics::Texture
 Texture (TextureDescriptor const &descriptor)

TextureDescriptor getDescriptor () const

- Public Member Functions inherited from Ocular::Core::Resource
 Resource (File const &source)

virtual void forceLoad ()

File getSourceFile () const

void setSourceFile (File const &file)

void setIsInMemory (bool inMemory)

bool isInMemory () const

void setSize (uint64_t size)

uint64_t getSize () const

ResourceType getResourceType () const

void setName (std::string const &name)

std::string const & getName () const

std::string const & getMappingName () const

void setMappingName (std::string const &name)

ResourceMetadata * getMetadata () const

void setMetadata (ResourceMetadata *metadata)

- Public Member Functions inherited from Ocular::Graphics::D3D11Texture
 D3D11Texture (ID3D11Device *device)

ID3D11Texture2D * getD3DTexture2D ()

ID3D11ShaderResourceView * getD3DShaderResource ()


Protected Member Functions

virtual bool createD3DTexture2D (TextureDescriptor const &descriptor) override

- Protected Member Functions inherited from Ocular::Graphics::Texture2D
void getTrueDimensions (uint32_t startX, uint32_t startY, uint32_t &trueWidth, uint32_t &trueHeight) const

- Protected Member Functions inherited from Ocular::Graphics::D3D11Texture
virtual bool createD3DShaderResource (TextureDescriptor const &descriptor)

void refresh (std::vector< Core::Color > &pixels, Graphics::TextureDescriptor const &descriptor)


Additional Inherited Members

- Protected Attributes inherited from Ocular::Graphics::Texture2D
std::vector< Core::Color > m_Pixels

- Protected Attributes inherited from Ocular::Graphics::Texture
TextureDescriptor m_Descriptor

- Protected Attributes inherited from Ocular::Core::Resource
ResourceType m_Type

ResourceMetadata * m_Metadata

File m_SourceFile

bool m_IsInMemory

uint64_t m_SizeInMemory

std::string m_Name

std::string m_MappingName

- Protected Attributes inherited from Ocular::Graphics::D3D11Texture
ID3D11Device * m_D3DDevice

ID3D11Texture2D * m_D3DTexture

ID3D11ShaderResourceView * m_D3DShaderResourceView

DXGI_FORMAT m_D3DFormat


Member Function Documentation

void Ocular::Graphics::D3D11Texture2D::apply ( )
overridevirtual

Applies any manually made pixel changes of the texture to the GPU. Textures will not be updated (i.e. changes rendered) until this method is called.

Note
Texture CPU access must be set to TextureAccess::WriteOnly or TextureAccess::ReadWrite in order to modify a texture at runtime.
Todo:
Apply CPU changes to Texture2D

Reimplemented from Ocular::Graphics::Texture2D.

void Ocular::Graphics::D3D11Texture2D::refresh ( )
overridevirtual

Refreshes the CPU texture data with any data stored on the GPU. This action can overwrite pre-existing CPU data.

Note
Texture CPU access must be set to TextureAccess::ReadOnly or TextureAccess::ReadWrite in order to refresh the CPU data at runtime.

Reimplemented from Ocular::Graphics::Texture2D.

void Ocular::Graphics::D3D11Texture2D::unload ( )
overridevirtual

Unloads all CPU data related to this texture.

If this is an instance of an API-specific texture implementation (such as D3D11Texture2D), then all GPU-related data will also be freed and all API-specific structures released.

Reimplemented from Ocular::Graphics::Texture2D.

The documentation for this class was generated from the following files:
